Tracing Gadolinium-based Contrast Agents from Wastewater, via Surface Water to Drinking Water

(14.03.2016)


Background:
Gadolinium is a so called "rare-earth element" occuring naturally in the earth crust at relatively low concentration of about 6.2 ppm. In recent decades, a significant amount of anthropogenic gadolinium has been released into the environment as a result of the broad application of contrast agents for magnetic resonance imaging (MRI). While the gadolinium(III) ion occurring in water-soluble salts is quite toxic to mammals, the chelated gadolinium(III) compounds used as contrast agents are far less toxic because they carry gadolinium(III) through the kidneys and out of the body before the free ion can be released into tissue. However the kinetic and thermodynamic stability of the gadolinium chelates makes these complexes also quite resistant against wasterwater treatment and environmental degradation.

The new studies:
In order to follow the gadolinium-based contrast agents from the wastewater discharge through the aquatic environment, the researchers developed  sensitive and selective methods for the species determination of Gd-based contrast agents that allows the differentiation of complexed gadolinium from other (natural) Gd species occuring at background levels in the aquatic environment. In earlier studies it was shown that Gd-based contrast agents are neither significantly retained nor degraded during wastewater processing.  Using the developed methods for speaciation analysis, the researchers investigated the stability of frequently applied Gd-based MRI contrast agents towards UV radiation. The hyphenation of hydrophilic interaction liquid chromatography (HILIC) with inductively coupled plasma mass spectrometry (ICP-MS) and of HILIC with electrospray ionization mass spectrometry (ESI-MS) provided quantitative elemental information as well
as structural information.

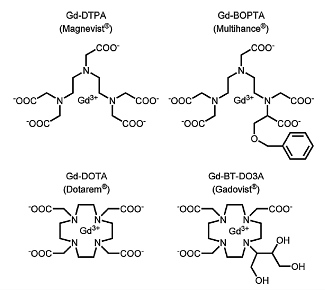

Figure 1: Structures of the frequently applied gadolinium-based
contrast agents for MRI examinations with respective trademarks


The contrast agents Gd-DTPA, Gd-DOTA and Gd-BT-DO3A showed a high stability in irradiation experiments applying a wavelength range from 220 nm to 500 nm. Nevertheless, the degradation of Gd-BOPTA as well as the formation of Gd-containing transformation products was observed by means of HILIC-ICP-MS.

In a second study the group than followed the gadolinium species through different steps of drinking water purification from surface water in a series of waterworks.  Water samples from six waterworks in Germany were analyzed during this study, covering different techniques of drinking water purification. Applied purification techniques involve ground filtration, filtration through activated carbon as well as ozonation. Disinfection of the drinking water is carried out in those water-works by addition of chlorine dioxide or UV irradiation. Using sector-field ICP-MS in combination with ultrasonic nebulization for sample introduction and a HILIC method for on-line separtion of the Gd-based contrast agents, very low detection limits between 8 and 14 pmol/L were obtained for the different contrast agents. This high detection power enabled to follow the frequently applied contrast agents Gd-DTPA, Gd-DOTA and Gd-BT-DO3A throughout the purification steps of the different water works. There was no evidence for additional Gd species or transformation products being present in the analyzed samples. Since sampling schemes were not sufficient for a mass balance throughout the water processing, an interpretation of the data regarding a possible removal of contrast agents was not possible.  However measured concentration levels of Gd-based contrast agents did not significantly diminish through the process.
