Single particle detection by ICP-MS: From particles via ion clouds to signals

(17.09.2018)


Background:
Engineered nanomaterials (ENMs), a major product of the rapid development of nanotechnology over the last couple of decades, have found numerous applications in consumer products of daily life, yet also in medical applications and treatments, leading to significant release into the environment. Analytical methods are required both to characterize ENMs with respect to control their production but also to investigate their biological effects and their fate in the environment.

During the last decade, inductively coupled plasma-mass spectrometry (ICP-MS) has proven to be a valuable analytical tool, providing some characteristic information. As a highly sensitive technique for multielement determination ICP-MS can be used to provide information about the composition of such materials. Even further, it could be shown that ICP-MS can provide information about the size of nanoparticles (NPs), when used in the so called "single-particle detection" mode. In this mode the frequency of measurements is enhanced to 1000 measurements per second or higher. When such many measurements are performed with a very short dwell time below one ms, every measurement window may access only a single particle, when highly diluted suspensions are introduced into the ICP (see figure 1).


Figure 1: Conventional steady-state and single-particle detection mode for the ICP-MS

Instead of a stady-state signal, proportional to the concentration of the analyte in a solution, under such conditions of very short dwell times, the ICP-MS generates single pulses for each particle entering the plasma, where the signal height is proportional to the number of atoms contained in the particle.

The new study:
In order to fundamentally understand the process involved in single-particle signal generation and the parameters that might have an influence on the working range, detection power and accuracy, the group of researchers from the Unversities of Münster and Antwerp investigated the processes taking place within the ICP. There selected the approach of both experimental ICP-MS measurements supported by plasma modelling (see figure 2).

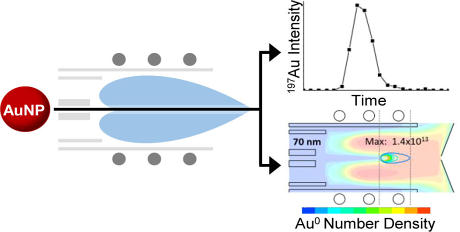

Figure 2: Workflow of the study of the ICP-MS signal generation from the introduction of NPs to the ICP both by experimental plasma diagnostic as well as plasma modeling

For this purpose, a set of nanoparticles with narrow distributions around particle sizes ranging between 15 and 100 nm were synthesized and characterized by established methods. Thses particles were introduced into the ICP and a statistically significant number of short transient events was recorded by the MS being operated with a very short dwell time of 50 µs. Such short measurement time did not only allow to get a signal for each particle but to follow the ion cloud generation and transport through the plasma into the sampler cone. From these signal profiles, the summed intensity, the maximun intensity and the signal duration was evaluated, of which all three were found to depend on particle size.

The experimental data showed an increase of the summed signal from 10 to 1661 counts for particles between 15.4 to 83.2 nm. For the same particles, the event duration (signal widthg) increased from 322 to 1007 µs. The simulated data from the plasma model fully supported the trends experimentally observed. Additionally the simulated data revealed that the plasma temperature, and therefore the point of ionization of the particles within the ICP, is the same for all diameters.

The authors concluded, that their results clearly showed the limitations of unresolved single particle detection and provides information not only for an improved understanding but also might help to improve the method with respect to working range and accuracy.



The original study:

Joshua Fuchs, Maryam Aghaei, Tilo D. Schachel, Michael Sperling, Annemie Bogaerts, Uwe Karst, Impact of the Particle Diameter on Ion Cloud Formation from Gold Nanoparticles in ICPMS, Anal. Chem., 90 (2018) 10271−10278. DOI: 10.1021/acs.analchem.8b02007




Used techniques and instrumentation:

AnalytikJena PlasmaQuant MS Elite ICP-MS





Related studies (newest first)

A. Bogaerts, M. Aghaei, Inductively coupled plasma-mass spectrometry: insights through computer modeling, J. Anal. At. Spectrom., 32/2 (2017) 233– 261, DOI: 10.1039/C6JA00408C

M.D. Montaño, J.W. Olesik, A.G. Barber, K. Challis, J.F. Ranville, Single Particle ICP-MS: Advances toward routine analysis of nanomaterials, Anal. Bioanal. Chem., 408/19 (2016) 5053– 5074, DOI: 10.1007/s00216-016-9676-8

I. Abad-Álvaro, E. Peña-Vázquez, E. Bolea, P. Bermejo-Barrera, J.R. Castillo, F. Laborda, Evaluation of number concentration quantification by single-particle inductively coupled plasma mass spectrometry: microsecond vs. millisecond dwell times, Anal. Bioanal. Chem., 408/19 (2016) 5089– 5097, DOI: 10.1007/s00216-016-9515-y

M. Aghaei, A. Bogaerts, Particle transport through an inductively coupled plasma torch: elemental droplet evaporation, J. Anal. At. Spectrom., 31/3 (2016) 631– 641, DOI: 10.1039/C5JA00162E

M. Aghaei, H. Lindner, A. Bogaerts, Ion Clouds in the Inductively Coupled Plasma Torch: A Closer Look through Computations, Anal. Chem., 88/16 (2016) 8005– 8018, DOI: 10.1021/acs.analchem.6b01189

A. Hineman, C. Stephan, Effect of dwell time on single particle inductively coupled plasma mass spectrometry data acquisition quality, J. Anal. At. Spectrom., 29/7 (2014) 1252– 1257, DOI: 10.1039/C4JA00097H

J. Tuoriniemi, G. Cornelis, M. Hassellöv, Improving the accuracy of single particle ICPMS for measurement of size distributions and number concentrations of nanoparticles by determining analyte partitioning during nebulisation,  J. Anal. At. Spectrom., 29/4 (2014) 743– 752, DOI: 10.1039/C3JA50367D

M. Aghaei, L. Flamigni, H. Lindner, D. Gunther, A. Bogaerts, Occurrence of gas flow rotational motion inside the ICP torch: a computational and experimental study, J. Anal. At. Spectrom., 29/2 (2014), 249– 261, DOI: 10.1039/C3JA50302J

M. Aghaei, H. Lindner, A. Bogaerts, The effect of the sampling cone position and diameter on the gas flow dynamics in an ICP, J. Anal. At. Spectrom., 28/9 (2013) 1485– 1492, DOI: 10.1039/c3ja50107h

H.E. Pace, N.J. Rogers, C. Jarolimek, V.A. Coleman, C.P. Higgins, J.F. Ranville, Single Particle Inductively Coupled Plasma-Mass Spectrometry: A Performance Evaluation and Method Comparison in the Determination of Nanoparticle Size, Anal. Chem., 84/10 (2012) 4633– 4633, DOI: 10.1021/ac300942m

H.E. Pace, N.J. Rogers, C. Jarolimek, V. Coleman, E.P. Gray, C.P. Higgins, J.F. Ranville, Single Particle Inductively Coupled Plasma-Mass Spectrometry: A Performance Evaluation and Method Comparison in the Determination of Nanoparticle Size,  Environ. Sci. Technol., 46/22 (2012) 12272– 12280, DOI: 10.1021/es301787d

J.W. Olesik, P.J.J. Gray, Considerations for measurement of individual nanoparticles or microparticles by ICP-MS: determination of the number of particles and the analyte mass in each particle, J. Anal. At. Spectrom., 27/7 (2012) 1143– 1155, DOI: 10.1039/c2ja30073g

M. Aghaei, H. Lindner, A. Bogaerts, Effect of a mass spectrometer interface on inductively coupled plasma characteristics: a computational study, J. Anal. At. Spectrom., 27/4 (2012) 604– 610, DOI: 10.1039/c2ja10341a

M. Aghaei, H. Lindner, A. Bogaerts, Optimization of operating parameters for inductively coupled plasma mass spectrometry: A computational study, Spectrochim. Acta, Part B, 76 (2012) 56– 64, DOI: 10.1016/j.sab.2012.06.006

F. Laborda, J. Jiménez-Lamana, E. Bolea, J.R.J. Castillo, Selective identification, characterization and determination of dissolved silver(I) and silver nanoparticles based on single particle detection by inductively coupled plasma mass spectrometry, Anal. At. Spectrom., 26/7 (2011) 1362, DOI: 10.1039/c0ja00098a

H. Lindner, A. Murtazin, S. Groh, K. Niemax, A. Bogaerts, Simulation and Experimental Studies on Plasma Temperature, Flow Velocity, and Injector Diameter Effects for an Inductively Coupled Plasma, Anal. Chem., 83/24 (2011) 9260– 9266, DOI: 10.1021/ac201699q

H. Lindner, A. Bogaerts, Multi-element model for the simulation of inductively coupled plasmas: Effects of helium addition to the central gas stream,  Spectrochim. Acta, Part B, 66/6 (2011) 421– 431, DOI: 10.1016/j.sab.2011.04.007

S.H. Hu, R. Liu, S.C. Zhang, Z. Huang, Z. Xing, X.R. Zhang, A new strategy for highly sensitive immunoassay based on single-particle mode detection by inductively coupled plasma mass spectrometry, Am. Soc. Mass Spectrom., 20/6 (2009) 1096– 1103, DOI: 10.1016/j.jasms.2009.02.005

M. Tanner, D. Günther, Short transient signals, a challenge for inductively coupled plasma mass spectrometry, a review, Anal. Chim. Acta, 633/1 (2009) 19– 28, DOI: 10.1016/j.aca.2008.11.041

C. Degueldre, P.-Y. Favarger, S. Wold, Gold colloid analysis by inductively coupled plasma-mass spectrometry in a single particle mode, Anal. Chim. Acta, 555/2 (2006) 263– 268, DOI: 10.1016/j.aca.2005.09.02

C. Degueldre, P.Y. Favarger, C. Bitea, Zirconia colloid analysis by single particle inductively coupled plasma–mass spectrometry, Anal. Chim. Acta, 518/1–2 (2004) 137– 142, DOI: 10.1016/j.aca.2004.04.015

C. Degueldre, P.Y. Favarger, Thorium colloid analysis by single particle inductively coupled plasma-mass spectrometry, Talanta, 623/5 (2004) 1051– 1054, DOI: 10.1016/j.talanta.2003.10.016

D.B. Aeschliman, S.J. Bajic, D.P. Baldwin, R.S. Houk, High-speed digital photographic study of an inductively coupled plasma during laser ablation: comparison of dried solution aerosols from a microconcentric nebulizer and solid particles from laser ablation, J. Anal. At. Spectrom., 18 (2003) 1008– 1014, DOI: 10.1039/b302546m

C. Degueldre, P.Y. Favarger, Colloid analysis by single particle inductively coupled plasma-mass spectroscopy: a feasibility study, Colloids Surf., A, 217/1–3 (2003) 137– 142, DOI: 10.1016/S0927-7757(02)00568-X

M.P. Dziewatkoski, L.B. Daniels, J.W. Olesik, Time-Resolved Inductively Coupled Plasma Mass Spectrometry Measurements with Individual, Monodisperse Drop Sample Introduction, Anal. Chem., 68/7 (1996) 1101– 1109, DOI: 10.1021/ac951013b

S.E. Hobbs, J.W. Olesik, Inductively coupled plasma mass spectrometry signal fluctuations due to individual aerosol droplets and vaporizing particles, Anal. Chem., 64/3 (1992) 274– 283, DOI: 10.1021/ac00027a007
