Triple Quad ICP-MS: Pushing the limits for quantitation of phosphorus and sulfur

(19.07.2012)


Background:
Inductively coupled plasma mass spectrometry is an ideal tool to quantify elemental concentrations and in case of known stochiometry to quantify compounds. The main feature, allowing for such quantification is the general compound independent element response of the system hampered only by spectral interferences caused by polyatomic species. Quantification schemes used in proteomics mostly relies on the use of synthetic isotopically labeled peptides/proteins which are used as internal standards for the quantification of the corresponding targeted species. It is clear that sensitive and interference-free quantification of ICP-detectable elements naturally present in proteins will boost the role of ICP-MS in proteomics. Unfortunately, the determination of heteroatoms present in many proteins, namely sulfur (being present in about 5% in natural proteine) and phosphorus (because of phosphorylation in about 1/3 of all proteins in eukaryotic cells) is highly compromised by their high ionization potentials and further limited by serious polyatomic interferences. Existing approaches up to know relied on high resolution mass spectrometry using sector field instruments or reaction cells used in quadrupole instruments. Using such systems, absolute detection limits achieved are in the low pmol and medium-high fmol range for S- and P-containing species, respectively, still far from those reported using ESI-MS/MS and isotopically labeled synthetic peptides.

The new study:
A spanish research group headed by Alfredo Sanz-Medel now for the first time proposed a new concept of polyatomic interference removal in ICP-MS using tandem MS for S and P-containing species analysis.

Using a novel Triple Quad ICP-MS (Agilent 8800 ICPQQQ, Tokyo, Japan), oxygen (Ar:O2 mixture, 8:2) was introduced to the ICP at a flow rate of 0.08 L/min in order to oxidise the carbon in the plasma resulting from the introduction of the organic mobile phase (acetonitrile). Oxygen was also introduced in the cell at a flow rate of 0.35 mL min.

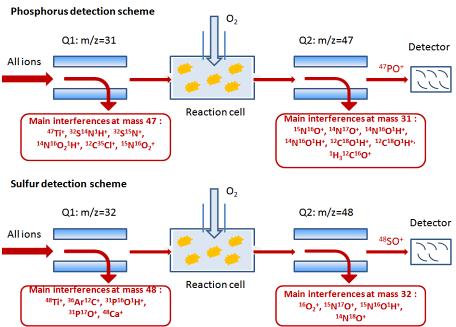

Fig. 1: ICP-QQQMS detection schemes for phosphorus and sulfur

Figure 1 depicts how the new triple-quad system deals with the serious polyatomic interferences suffered by S and P during ICP-MS analysis. The first quadrupole (Q1) works as 1 amu window band-pass mass filter selecting targeted analyte ions (P and S) and their polyatomic isobaric interferences. This is the first specificity level. Reaction with O2 in the cell separates analytes and interferences by shifting analytes to new product ion masses because reaction rate with O2 is much higher for 31P+ and 32S+ (and 34S+) than for their polyatomic interferences. This leads to interference-free detection of P and S after setting the second quadrupole (Q2) at 16 mass units higher than Q1: m/z 47 (PO+), 48 (32SO+), and 50 (34SO+). This is the second specificity level where polyatomic interferences at nominal masses of P (15N16O+, 14N16OH+, 14N17O+, 12C18OH+) and S (16O2+, 15N17O+, 15N16OH+, 14N18O+) are removed.

The main advantage of the new ICP-QQQ compared to an single quad instrument equipped with DRC (ICP-DRC-MS) is the first specificity level set at Q1. In fact, Q1 rejects all masses except analyte (and its on-mass interferences) ensuring that all the product ions analyzed in Q2 are derived from the selected precursor ion, reducing the background level.

Using this detection schemes, the new systen was optimized for the hyphenated mode with  capHPLC being operated at low flow (5 µL/min) and high organic mobile phase (30 % acetonitrile). Obtained detection limits were as low as 1.2 ng/mL for 32S and 0.6 ng/mL  for 31P and were mostly limited by blank values originating from contaminated organic reagents.

To demonstrate the feasibility of the new approach the researchers selected the determination of bis(4-nitro-phenyl)phosphate (BNPP)  and methionine as examples for P- and S-containing species. Linear calibration graphs were obtained for the working range of 0-200 ng/mL and limits of detection were 0.18 ng/mL S and 0.10 ng/mL P, which translate into 11 fmol and 6.6 fmol absolute, respectively. The authors state, that such good detection limits have not been achieved before, and are more than two orders of magnitude better for sulfur than reported with other systems.


The original study:

Silvia Diez Fernández, Naoki Sugishama, Jorge Ruiz Encinar, Alfredo Sanz-Medel, Triple Quad ICPMS (ICPQQQ) as a New Tool for Absolute Quantitative Proteomics and Phosphoproteomics, Anal. Chem., 84 (2012) 5851-5857. doi: 10.1021/ac3009516
