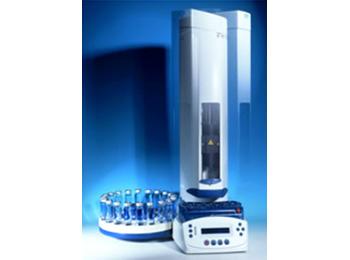

YOUNG LIN - HT250D Dual Headspace + Liquid Autosampler
| Year of introduction
Automation: Autosampler (GC/Head Space)
Automation: Autosampler (GC/Liquid)
|The HT250D is a compact headspace autosampler which mounts directly on most Gas Chromatography systems rather than taking up valuable bench space
next to the GC.
Within a few minutes, the autosampler can be transformed into a precision autosampler for liquid samples - and back again when required. This means that there is no longer any need for two different autosamplers. The HT250D simply maximizes the efficiency of a single GC system. All this is available for little more than the cost of the Headspace autosampler alone!
Brackets are available for mounting on all the current popular GC brands including all Agilent, Shimadzu and Varian GC\'s as well as older models such as the
HP5890. In fact there are very few GC\'s that the HT250D cannot be mounted on!
The HT250D untilizes a heated syringe to transfer the samples from the 6 position oven directly into the injector. This eliminates tubing, dead volume and sample absorption.
- Compatible with most GC systems
- Easy changeable from Headspace to
- Liquid samples.
- Rotating head design leaves injection
- port free for manual injections
- Costs less than most Headspace only
- No Maintenence Required
- Mounts directly on the GC, no bench
- space required
- Every aspect of sample handling and
- injection is easily programmable.
- Outstanding Performance - equivalent or
- better than your existing autosampler
Vial transport is positive and incredibly reliable - the system constantly checks that vials are present and are located in the correct place. No magnetic or special caps are required.
Progressive sample preparation means that samples are automatically loaded into the oven at the correct time to ensure an injection is ready as soon as the previous run is complete - this maximizes GC efficiency.
The temperature of the 2.5ml or 5ml injection syringes is programmable along with the Nitrogen flush post injection to eliminate sample carry-over.
The HT250D is transformed into a 110 position autosampler for liquid samples. The liquid GC kit includes a self identifying vial tray along with wash and waste vials and syringe.
Every aspect of the autosampler may be controlled to optimize performance for your specific samples.
The autosampler utilizes a simple robotic head design which means that the injector port is always free - a big advantage if a manual injection is ever needed.
Headspace Autosampler Specifications:
Syringe sizes: 2.5ml
Tray Capacity: 40 vials, 20ml or 10ml
Incubation System: 6 Position Oven. Orbital Shaking.
Oven Temperature: 40 - 150oC
Incubation Time: 0 to 23hr 59min
Shaking Cycles on/off: 0 to 99min
Syringe Temperature: 40 to 150oC
Inj. Equilibrium Delay: up to 60 sec
Sampling Volume Steps: of 0.01ml
Filling Speed: 0.1 to 100ml/min
Sampling Repeats: up to 15
Wait Time Between Samples: 1 to 99sec
Injection Speed: 0.1 to 100ml/min
Waiting Time pre/post inj: 1 to 99sec
Liquid Autosampler Specifications
Syringe Sizes: 1,10,25,50,100ul
Tray Capacity Vials: 110 x 2ml or 2.5ml, 40 x 10ml
Sample & Air Volume: Steps of 0.1ul
Aspirating Speed: 0.1ul - 100ul/sec
Needle Washing: Up to 15
Air Bubble Removal: Up to 15 Strokes
Viscocity Delay: 1-60 Secs
Injection Speed: 0.1 to 100ul/sec
Waiting Time Before & After Inject: 1 to 60 Secs
Injection Depth: Variable
IS and Air Gap Volume: Steps of 0.1ul, 1-2 Air Gaps
Bracketing available for
Agilent, Shimadzu, Varian, Perkin Elmer, Thermo, Dani
and all other major GC systems
