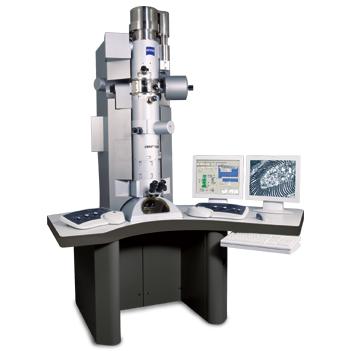

The LIBRA® 120 combines the proven flexibility and ease of use of its predecessor with completely new control electronics, Windows® based user interface and an improved vacuum system.
The highly flexible Koehler illumination system together with the factory aligned In-column OMEGA filter provide excellent image contrast from thick and even unstained thin samples. Unique operation modes ensure you to always obtain the maximum of information and the best image quality of your sample. Unrivalled detector flexibility enables the use of the latest CCD and image plate technology for comprehensive EFTEM analysis in life science, polymer and material science research.
The LIBRA® 120 is operated through dedicated control panels. The new WinTEM™ GUI follows the successful philosophy of the SEM instruments for maximum convenience and consistent look-and-feel operation across the complete EM product range.
- 120 kV LaB6 or W emitter with unique Koehler illumination system
- In-column OMEGA filter
- Completely dry vacuum system
- High precision 5-axes goniometer stage with ±75° a tilt
- Fully analytical EFTEM with unique operation modes for imaging, diffraction and cryo / low dose
- Unrivalled detector flexibility
- Sub-ppm stability
- WinTEM™ graphical user interface
80 and 120 kV
Highly flexible advanced Koehler illumination system
Truly symmetrical type
Resolution Point - Point: 0.34 nm
Information Limit: <0.20 nm
STEM: <0.50 nm
Lifetime factory aligned In-column OMEGA type
Dispersion: 1.17 µm/eV @ 120 kV
Energy resolution: <1.5 eV
Distortion: < ±1.0%
Acceptance angle: 80 mrad at Δ = ±6 eV
Isochromaticity: <1.0 eV in 2.5 µm Ř
5-axes fully eucentric goniometer
Tilt range α/β: ±75° / ±30°
Magnification zoom for imaging, diffraction and spectroscopy with 5 imaging lenses and OMEGA spectrometer.
TEM: 8 - 630,000x
STEM: 50 - 1,000,000x
EELS: 20 - 315x
Modes of Operation EFTEM: Global and elastic BF/DF/Low Dose (elemental and structure sensitive
Analysis: EELS, ESI, Image EELS, EDS
Diffraction: Global and elastic SAED, CBED, LACBED, micro-ED
STEM: SE, BSE, HAADF, BF, DF, SI, EDS
Completely oil-free with integrated cold-trap
* Pre-vacuum scroll pump with buffer tank
* Split-flow TMP for viewing chamber, filter, specimen and emitter. Differential system with IGP (50 l/sec) for emitter area (optional)
WinTEM™ Graphical User Interface (GUI) with Windows®XP, operated by mouse, keyboard and dedicated control panels.
